How a C program becomes assembly — one small program, from source to silicon

Last time I took one tiny program and stared at its assembly from four angles until the “different assemblies” turned out to be mostly spelling. This time I want the whole picture in one place: take one small C program, follow it all the way down, and see every C construct turn into the exact instructions the CPU runs. Local variables, function calls, arithmetic, if, for, printf, pointers, arrays, malloc/free — each one has a machine-level shape, and once you’ve seen the shape it stops being mysterious.

No single instruction here is hard. The point is the mapping: every line of C is a small, predictable pattern in assembly, and the “magic” of a running program is just a few of those patterns stacked up.

Platform note: everything here is x86-64 on macOS, built with clang -O0 so the assembly stays literal — one C idea per instruction, nothing optimized away.

---

The program

A little calculator: four arithmetic functions, a loop that prints even/odd, and one function that builds an array [0,1,2,3,4] and returns it.

#include <stdio.h>
#include <stdlib.h>

int *make_sequence(int n) {
  int *arr = malloc(n * sizeof(int));   // ask the heap for n ints
  if (arr == NULL) {
    return NULL;                        // malloc failed — bail out
  }
  for (int i = 0; i < n; i++) {
    arr[i] = i;
  }
  return arr; // the heap block lives on after this frame is destroyed
}

int add(int a, int b, int x, int o, int p) { return a + b + x + o + p; }
int sub(int a, int b) { return a - b; }
int multiply(int a, int b) { return a * b; }
int divide(int a, int b) { return a / b; }

int main(void) {
  int a = 20;
  int b = 10;

  int sum = add(a, b, 1, 2, 3);
  int diff = sub(a, b);
  int product = multiply(a, b);
  int quotient = divide(a, b);

  printf("Sum       = %d\n", sum);
  printf("Difference= %d\n", diff);
  printf("Product   = %d\n", product);
  printf("Quotient  = %d\n", quotient);

  printf("\nLoop:\n");

  int total = 0;
  for (int i = 0; i < 5; i++) {
    total += i;
    if (i % 2 == 0) {
      printf("%d is even\n", i);
    } else {
      printf("%d is odd\n", i);
    }
  }
  printf("Total = %d\n", total);

  int *sequence = make_sequence(5);
  if (sequence != NULL) {
    printf("\nSequence:\n");
    for (int i = 0; i < 5; i++) {
      printf("%d ", sequence[i]);
    }
    printf("\n");
    free(sequence); // release the heap memory
  }

  return 0;
}

Build and run:

clang -g -O0 calc.c -o calc && ./calc

Sum       = 36
Difference= 10
Product   = 200
Quotient  = 2

Loop:
0 is even
1 is odd
2 is even
3 is odd
4 is even
Total = 10

Sequence:
0 1 2 3 4

---

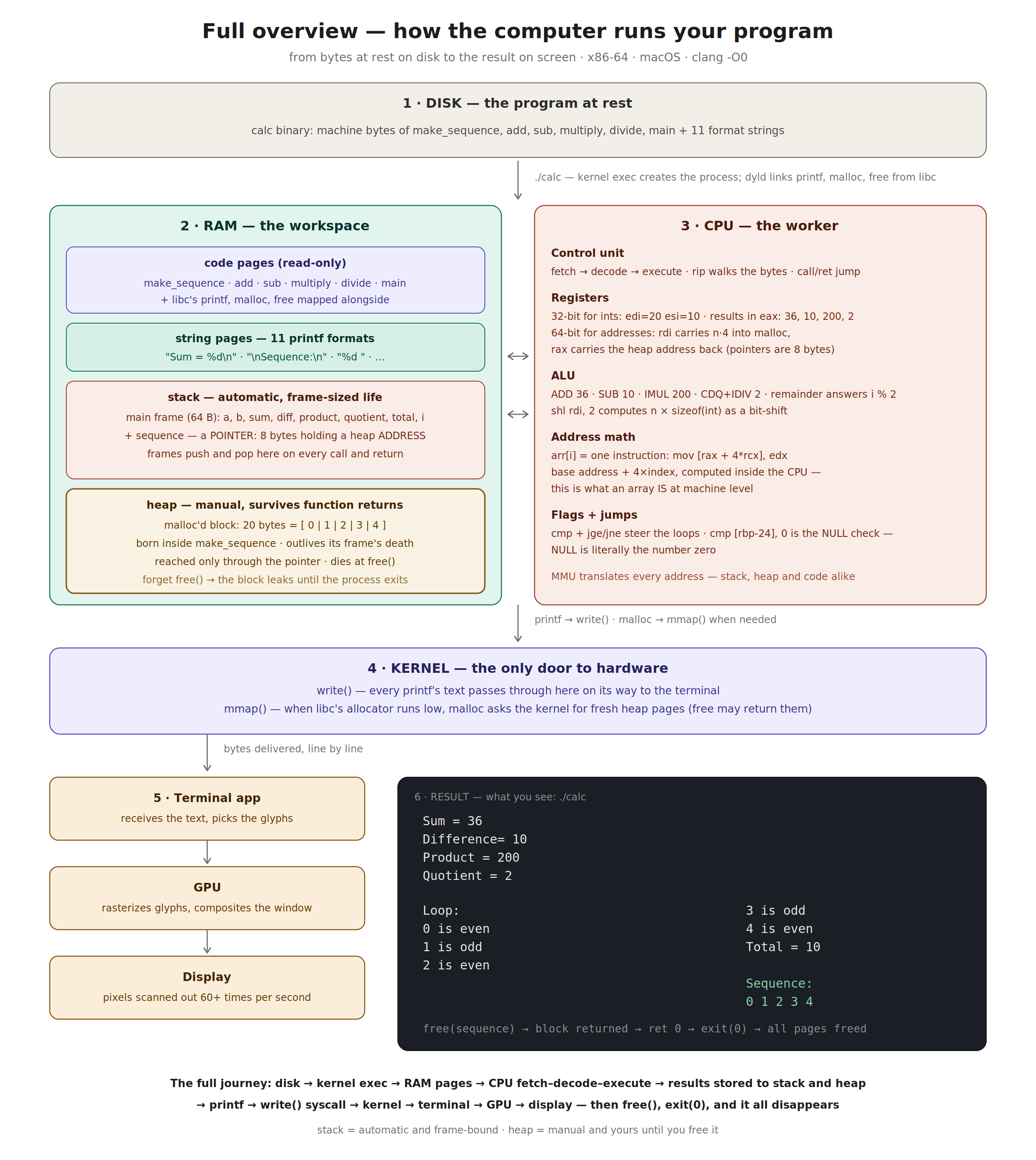

Where everything lives while it runs

Before the instructions, here’s the map I keep in my head of where each piece of the program sits while it executes — from the binary on disk, through RAM and the CPU, out to the kernel and finally the pixels on screen.

Reading it top to bottom:

• Disk holds the binary at rest — the machine bytes of my six functions plus the format strings. malloc, free, and printf aren’t in my file; dyld links them from libc at launch.
• RAM has four regions: code pages (read-only instructions), string pages (the 11 printf format strings), the stack (automatic, frame-sized locals like a, b, sum, i), and the heap (the malloc‘d block that outlives the function that made it).
• The CPU is the worker: the control unit does fetch → decode → execute, rip walking the bytes; registers hold the working values; the ALU does the arithmetic; the MMU translates every address.
• The kernel is how the program touches the outside world — write() is where every printf ends up, and mmap() is how malloc gets fresh pages when it needs them.
• Terminal → GPU → display turns the bytes write() delivered into glyphs you can read.

The one distinction worth carrying into the assembly: the stack is automatic and frame-bound; the heap is manual and yours until you free it.

---

A one-screen assembly primer

Every function below is built from the same small vocabulary. If these click, the full listing reads like prose.

Registers are the CPU’s built-in variables — a handful of 64-bit slots. The same register has different names by width: rax (64-bit) / eax (low 32) / al (low 8) are all the same register.

Register	Role here
eax/rax	scratch + return value (a function’s result comes back here)
edi, esi, edx, ecx, r8d, r9d	1st–6th integer arguments, in that order (System V ABI)
rbp	base pointer — anchor for the current stack frame; locals are [rbp - N]
rsp	stack pointer — top of the stack
rip	instruction pointer — address of the next instruction

The instructions used, in plain English:

Instruction	Means
mov dst, src	copy a value (Intel syntax: destination first)
lea	compute an address, like &x — no memory read
push / pop	put/take a value on/off the stack
call / ret	jump into a function / return from it
add / sub / imul	integer add / subtract / multiply
cdq + idiv	signed divide: quotient → eax, remainder → edx
shl r, 2	shift left 2 bits = multiply by 4
movsxd	copy a 32-bit value into a 64-bit register, sign-extended
cmp + jne/jge/je	compare, then jump if a condition holds
jmp	unconditional jump
xor eax, eax	two-byte idiom for “set eax to 0”

Two rituals you’ll see in every function:

• The frame prologue/epilogue. Every function opens with push rbp; mov rbp, rsp; sub rsp, N (save the old anchor, set a new one, reserve N bytes for locals) and closes with add rsp, N; pop rbp; ret. That’s just “open a frame” / “close a frame.”
• mov al, 0 before every printf. printf is variadic, and the ABI requires al to hold how many vector (float) registers were used for arguments. We pass none, so al = 0. It shows up before all 14 printf calls.

That’s the whole toolkit. Now the mapping.

---

Every C construct → its assembly

Local variables are stack slots

int a = 20; int b = 10; becomes two writes to fixed offsets from rbp:

mov dword ptr [rbp - 8], 20      ; a = 20
mov dword ptr [rbp - 12], 10     ; b = 10

A variable is a labelled spot in the current frame. dword = 32 bits, because int is 4 bytes.

A function call is “load the registers, then call”

add(a, b, 1, 2, 3) loads the five arguments into the ABI’s argument registers and calls. The fifth spills into r8d — you can literally watch the argument order:

mov edi, dword ptr [rbp - 8]     ; 1st arg = a
mov esi, dword ptr [rbp - 12]    ; 2nd arg = b
mov edx, 1                       ; 3rd arg
mov ecx, 2                       ; 4th arg
mov r8d, 3                       ; 5th arg
call _add
mov dword ptr [rbp - 16], eax    ; sum = return value (in eax)

Inside add, the arguments are copied to its own frame and summed in eax, which is exactly where the caller reads the result. Arguments go out in edi, esi, …; the answer comes back in eax. That single convention is what makes functions composable.

Arithmetic is one ALU instruction each

add  eax, ...     ; +
sub  eax, ...     ; -
imul eax, ...      ; *
cdq / idiv ...     ; /  (quotient in eax, remainder in edx)

Division is the interesting one: cdq sign-extends eax into the edx:eax pair, then idiv leaves the quotient in eax and the remainder in edx. That’s why i % 2 uses the same idiv — the even/odd test just reads edx (the remainder) instead of eax.

if / for are cmp + a jump

The even/odd branch is a compare and a conditional jump:

cdq
idiv ecx                 ; ecx = 2  →  remainder lands in edx
cmp  edx, 0              ; i % 2 == 0 ?
jne  LBB5_4              ; nonzero → jump to the "odd" branch
... "even" branch ...
jmp  LBB5_5
LBB5_4: ... "odd" branch ...

A for loop is the same idea wrapped in a back-edge — initialize, test-and-exit at the top, body, increment, then jmp back to the test:

mov dword ptr [rbp - 36], 0      ; i = 0
LBB5_1:
    cmp dword ptr [rbp - 36], 5  ; i < 5 ?
    jge LBB5_7                    ; no → leave the loop
    ... body ...
    add eax, 1                    ; i++
    jmp LBB5_1                    ; back to the test
LBB5_7:

Structured control flow doesn’t exist at the machine level — it’s all cmp and jmp to labels.

printf — load args, zero al, load the format address

mov esi, dword ptr [rbp - 16]    ; 2nd arg = the value
lea rdi, [rip + L_.str]          ; 1st arg = address of "Sum       = %d\n"
mov al, 0                        ; 0 vector args (variadic rule)
call _printf

lea rdi, [rip + L_.str] is how a string constant becomes an argument: the address is computed relative to rip, so the code doesn’t care where the OS loaded it. Those L_.str labels live in a separate __cstring section at the very bottom of the listing — the “string pages” from the system diagram.

Pointers, arrays, and the heap

This is the part that finally made pointers concrete for me, so it gets its own diagram. Everything here is the same primitives — registers, mov, address math — pointed at heap memory instead of the stack.

Walking make_sequence against the assembly:

_make_sequence:
    push  rbp
    mov   rbp, rsp
    sub   rsp, 32
    mov   dword ptr [rbp - 12], edi        ; save n
    movsxd rdi, dword ptr [rbp - 12]       ; rdi = n, widened to 64-bit
    shl   rdi, 2                           ; rdi = n * 4   (sizeof int)
    call  _malloc                          ; address of the block comes back in rax
    mov   qword ptr [rbp - 24], rax        ; arr = that address
    cmp   qword ptr [rbp - 24], 0          ; arr == NULL ?
    jne   LBB0_2
    mov   qword ptr [rbp - 8], 0           ; return NULL
    jmp   LBB0_7
LBB0_2:
    mov   dword ptr [rbp - 28], 0          ; i = 0
LBB0_3:
    mov   eax, dword ptr [rbp - 28]
    cmp   eax, dword ptr [rbp - 12]        ; i < n ?
    jge   LBB0_6
    mov   edx, dword ptr [rbp - 28]        ; edx = i
    mov   rax, qword ptr [rbp - 24]        ; rax = arr (base address)
    movsxd rcx, dword ptr [rbp - 28]       ; rcx = i (index)
    mov   dword ptr [rax + 4*rcx], edx     ; arr[i] = i
    ...
LBB0_6:
    mov   rax, qword ptr [rbp - 24]
    mov   qword ptr [rbp - 8], rax         ; return value = arr
LBB0_7:
    mov   rax, qword ptr [rbp - 8]
    add   rsp, 32
    pop   rbp
    ret

Five things to take from it:

1. malloc(n * sizeof(int)) — × 4 becomes shl rdi, 2, and the size math uses 64-bit registers (rdi, rax) because a pointer is 8 bytes. The block’s address returns in rax. (movsxd widens the 32-bit n to 64 bits first so the address arithmetic is clean.)
2. if (arr == NULL) is cmp ..., 0 — NULL is literally zero. One compare, one jump.
3. arr[i] = i is a single instruction: mov dword ptr [rax + 4*rcx], edx. An array subscript is just base + scale × index address math the CPU does in hardware. That is what an array is.
4. return arr returns only the 8-byte address in rax. The frame is torn down (add rsp, 32; pop rbp; ret) but the heap block survives — which is exactly why you can’t return a local array (its frame is reclaimed) and exactly why malloc exists.
5. free(sequence) (over in main) is just mov rdi, ...; call _free — hand the address back. Touch it afterwards and you’ve written a use-after-free.

return 0

The program ends with the idiom for zero:

xor eax, eax     ; return 0
add rsp, 64
pop rbp
ret

---

The full assembly

Here’s the entire listing clang -S -O0 -masm=intel produced — every function, the main that ties them together, the compiler scaffolding, and the string literals. With the primer above, there shouldn’t be a single unexplained line:

    .section    __TEXT,__text,regular,pure_instructions
    .build_version macos, 26, 0    sdk_version 26, 2
    .intel_syntax noprefix
    .globl    _make_sequence                  ## -- Begin function make_sequence
    .p2align    4, 0x90
_make_sequence:                         ## @make_sequence
    .cfi_startproc
## %bb.0:
    push    rbp
    .cfi_def_cfa_offset 16
    .cfi_offset rbp, -16
    mov    rbp, rsp
    .cfi_def_cfa_register rbp
    sub    rsp, 32
    mov    dword ptr [rbp - 12], edi
    movsxd    rdi, dword ptr [rbp - 12]
    shl    rdi, 2
    call    _malloc
    mov    qword ptr [rbp - 24], rax
    cmp    qword ptr [rbp - 24], 0
    jne    LBB0_2
## %bb.1:
    mov    qword ptr [rbp - 8], 0
    jmp    LBB0_7
LBB0_2:
    mov    dword ptr [rbp - 28], 0
LBB0_3:                                 ## =>This Inner Loop Header: Depth=1
    mov    eax, dword ptr [rbp - 28]
    cmp    eax, dword ptr [rbp - 12]
    jge    LBB0_6
## %bb.4:                               ##   in Loop: Header=BB0_3 Depth=1
    mov    edx, dword ptr [rbp - 28]
    mov    rax, qword ptr [rbp - 24]
    movsxd    rcx, dword ptr [rbp - 28]
    mov    dword ptr [rax + 4*rcx], edx
## %bb.5:                               ##   in Loop: Header=BB0_3 Depth=1
    mov    eax, dword ptr [rbp - 28]
    add    eax, 1
    mov    dword ptr [rbp - 28], eax
    jmp    LBB0_3
LBB0_6:
    mov    rax, qword ptr [rbp - 24]
    mov    qword ptr [rbp - 8], rax
LBB0_7:
    mov    rax, qword ptr [rbp - 8]
    add    rsp, 32
    pop    rbp
    ret
    .cfi_endproc
                                        ## -- End function
    .globl    _add                            ## -- Begin function add
    .p2align    4, 0x90
_add:                                   ## @add
    .cfi_startproc
## %bb.0:
    push    rbp
    .cfi_def_cfa_offset 16
    .cfi_offset rbp, -16
    mov    rbp, rsp
    .cfi_def_cfa_register rbp
    mov    dword ptr [rbp - 4], edi
    mov    dword ptr [rbp - 8], esi
    mov    dword ptr [rbp - 12], edx
    mov    dword ptr [rbp - 16], ecx
    mov    dword ptr [rbp - 20], r8d
    mov    eax, dword ptr [rbp - 4]
    add    eax, dword ptr [rbp - 8]
    add    eax, dword ptr [rbp - 12]
    add    eax, dword ptr [rbp - 16]
    add    eax, dword ptr [rbp - 20]
    pop    rbp
    ret
    .cfi_endproc
                                        ## -- End function
    .globl    _sub                            ## -- Begin function sub
    .p2align    4, 0x90
_sub:                                   ## @sub
    .cfi_startproc
## %bb.0:
    push    rbp
    .cfi_def_cfa_offset 16
    .cfi_offset rbp, -16
    mov    rbp, rsp
    .cfi_def_cfa_register rbp
    mov    dword ptr [rbp - 4], edi
    mov    dword ptr [rbp - 8], esi
    mov    eax, dword ptr [rbp - 4]
    sub    eax, dword ptr [rbp - 8]
    pop    rbp
    ret
    .cfi_endproc
                                        ## -- End function
    .globl    _multiply                       ## -- Begin function multiply
    .p2align    4, 0x90
_multiply:                              ## @multiply
    .cfi_startproc
## %bb.0:
    push    rbp
    .cfi_def_cfa_offset 16
    .cfi_offset rbp, -16
    mov    rbp, rsp
    .cfi_def_cfa_register rbp
    mov    dword ptr [rbp - 4], edi
    mov    dword ptr [rbp - 8], esi
    mov    eax, dword ptr [rbp - 4]
    imul    eax, dword ptr [rbp - 8]
    pop    rbp
    ret
    .cfi_endproc
                                        ## -- End function
    .globl    _divide                         ## -- Begin function divide
    .p2align    4, 0x90
_divide:                                ## @divide
    .cfi_startproc
## %bb.0:
    push    rbp
    .cfi_def_cfa_offset 16
    .cfi_offset rbp, -16
    mov    rbp, rsp
    .cfi_def_cfa_register rbp
    mov    dword ptr [rbp - 4], edi
    mov    dword ptr [rbp - 8], esi
    mov    eax, dword ptr [rbp - 4]
    cdq
    idiv    dword ptr [rbp - 8]
    pop    rbp
    ret
    .cfi_endproc
                                        ## -- End function
    .globl    _main                           ## -- Begin function main
    .p2align    4, 0x90
_main:                                  ## @main
    .cfi_startproc
## %bb.0:
    push    rbp
    .cfi_def_cfa_offset 16
    .cfi_offset rbp, -16
    mov    rbp, rsp
    .cfi_def_cfa_register rbp
    sub    rsp, 64
    mov    dword ptr [rbp - 4], 0
    mov    dword ptr [rbp - 8], 20
    mov    dword ptr [rbp - 12], 10
    mov    edi, dword ptr [rbp - 8]
    mov    esi, dword ptr [rbp - 12]
    mov    edx, 1
    mov    ecx, 2
    mov    r8d, 3
    call    _add
    mov    dword ptr [rbp - 16], eax
    mov    edi, dword ptr [rbp - 8]
    mov    esi, dword ptr [rbp - 12]
    call    _sub
    mov    dword ptr [rbp - 20], eax
    mov    edi, dword ptr [rbp - 8]
    mov    esi, dword ptr [rbp - 12]
    call    _multiply
    mov    dword ptr [rbp - 24], eax
    mov    edi, dword ptr [rbp - 8]
    mov    esi, dword ptr [rbp - 12]
    call    _divide
    mov    dword ptr [rbp - 28], eax
    mov    esi, dword ptr [rbp - 16]
    lea    rdi, [rip + L_.str]
    mov    al, 0
    call    _printf
    mov    esi, dword ptr [rbp - 20]
    lea    rdi, [rip + L_.str.1]
    mov    al, 0
    call    _printf
    mov    esi, dword ptr [rbp - 24]
    lea    rdi, [rip + L_.str.2]
    mov    al, 0
    call    _printf
    mov    esi, dword ptr [rbp - 28]
    lea    rdi, [rip + L_.str.3]
    mov    al, 0
    call    _printf
    lea    rdi, [rip + L_.str.4]
    mov    al, 0
    call    _printf
    mov    dword ptr [rbp - 32], 0
    mov    dword ptr [rbp - 36], 0
LBB5_1:                                 ## =>This Inner Loop Header: Depth=1
    cmp    dword ptr [rbp - 36], 5
    jge    LBB5_7
## %bb.2:                               ##   in Loop: Header=BB5_1 Depth=1
    mov    eax, dword ptr [rbp - 36]
    add    eax, dword ptr [rbp - 32]
    mov    dword ptr [rbp - 32], eax
    mov    eax, dword ptr [rbp - 36]
    mov    ecx, 2
    cdq
    idiv    ecx
    cmp    edx, 0
    jne    LBB5_4
## %bb.3:                               ##   in Loop: Header=BB5_1 Depth=1
    mov    esi, dword ptr [rbp - 36]
    lea    rdi, [rip + L_.str.5]
    mov    al, 0
    call    _printf
    jmp    LBB5_5
LBB5_4:                                 ##   in Loop: Header=BB5_1 Depth=1
    mov    esi, dword ptr [rbp - 36]
    lea    rdi, [rip + L_.str.6]
    mov    al, 0
    call    _printf
LBB5_5:                                 ##   in Loop: Header=BB5_1 Depth=1
    jmp    LBB5_6
LBB5_6:                                 ##   in Loop: Header=BB5_1 Depth=1
    mov    eax, dword ptr [rbp - 36]
    add    eax, 1
    mov    dword ptr [rbp - 36], eax
    jmp    LBB5_1
LBB5_7:
    mov    esi, dword ptr [rbp - 32]
    lea    rdi, [rip + L_.str.7]
    mov    al, 0
    call    _printf
    mov    edi, 5
    call    _make_sequence
    mov    qword ptr [rbp - 48], rax
    cmp    qword ptr [rbp - 48], 0
    je    LBB5_13
## %bb.8:
    lea    rdi, [rip + L_.str.8]
    mov    al, 0
    call    _printf
    mov    dword ptr [rbp - 52], 0
LBB5_9:                                 ## =>This Inner Loop Header: Depth=1
    cmp    dword ptr [rbp - 52], 5
    jge    LBB5_12
## %bb.10:                              ##   in Loop: Header=BB5_9 Depth=1
    mov    rax, qword ptr [rbp - 48]
    movsxd    rcx, dword ptr [rbp - 52]
    mov    esi, dword ptr [rax + 4*rcx]
    lea    rdi, [rip + L_.str.9]
    mov    al, 0
    call    _printf
## %bb.11:                              ##   in Loop: Header=BB5_9 Depth=1
    mov    eax, dword ptr [rbp - 52]
    add    eax, 1
    mov    dword ptr [rbp - 52], eax
    jmp    LBB5_9
LBB5_12:
    lea    rdi, [rip + L_.str.10]
    mov    al, 0
    call    _printf
    mov    rdi, qword ptr [rbp - 48]
    call    _free
LBB5_13:
    xor    eax, eax
    add    rsp, 64
    pop    rbp
    ret
    .cfi_endproc
                                        ## -- End function
    .section    __TEXT,__cstring,cstring_literals
L_.str:                                 ## @.str
    .asciz    "Sum       = %d\n"

L_.str.1:                               ## @.str.1
    .asciz    "Difference= %d\n"

L_.str.2:                               ## @.str.2
    .asciz    "Product   = %d\n"

L_.str.3:                               ## @.str.3
    .asciz    "Quotient  = %d\n"

L_.str.4:                               ## @.str.4
    .asciz    "\nLoop:\n"

L_.str.5:                               ## @.str.5
    .asciz    "%d is even\n"

L_.str.6:                               ## @.str.6
    .asciz    "%d is odd\n"

L_.str.7:                               ## @.str.7
    .asciz    "Total = %d\n"

L_.str.8:                               ## @.str.8
    .asciz    "\nSequence:\n"

L_.str.9:                               ## @.str.9
    .asciz    "%d "

L_.str.10:                              ## @.str.10
    .asciz    "\n"

.subsections_via_symbols

The lines starting with . are directives, not instructions — bookkeeping for the assembler and linker, none of which the CPU executes:

• .section, .globl, .p2align — where code/data goes, which symbols are visible, how to align them.
• .cfi_* — call-frame info, so debuggers can unwind the stack; pure metadata.
• .build_version, .subsections_via_symbols — platform and linker hints.
• ## %bb.N and the LBBx_y names — the compiler’s basic-block labels; only the ones that are jump targets matter.

Strip all of that and you’re left with exactly the instructions the primer covered.

---

One detail you can verify yourself

main opens its frame with sub rsp, 64. Count the locals it needs — a, b, sum, diff, product, quotient, total, two loop counters, and the 8-byte sequence pointer — and you’ll land near that number once you round up for 16-byte stack alignment. The compiler tallied every variable and sized the frame for me. Reading a frame size and reconstructing why it’s that number is my favorite five-second check that I actually understand what’s on the stack.

---

What I took away

A whole program is just a handful of patterns, repeated:

1. A variable is a stack slot. [rbp - N], sized by its type.
2. A function call is a calling convention. Args into edi, esi, …; result back in eax; frame opened and closed around it.
3. Control flow is cmp + jmp. if, else, and for are all compares and jumps to labels — structure is a fiction the compiler maintains for us.
4. A pointer is an address in a register, and an array is base + scale × index — arithmetic, not a container.
5. The stack is automatic, the heap is manual. malloc hands you memory that outlives its function; free gives it back.

Same CPU, same RAM, same fetch-decode-execute underneath every line. Once you can read one small program end to end, every bigger one is just more of the same patterns stacked higher.
